Informational widgets provide information about current location, speed, time, battery level on the map display.

Most of informational widgets stack together in the right column.

Informational widgets

Altitude​

Altitude widget shows the height above sea level of current geolocation. Android: on some devices altitude is not displayed correctly due to missing correction of Earth-geoid, you can download it via: Menu β†’ Download maps β†’ All Downloads β†’ World maps β†’ World altitude correction.

Altitude widget

EnableMenu β†’ Configure screen β†’ Right panel β†’ Altitude of the current location
On Click-
FormatAndroid: Menu β†’ Configure profile β†’ General settings β†’ Units & formats β†’ Units of length
iOS: Menu β†’ Settings β†’ App profiles β†’ General settings β†’ Units & formats β†’ Units of length

Current time​

This widget shows current time from your device.

Current time widget

EnableAndroid: Menu β†’ Configure screen β†’ Right panel β†’ Current time
iOS: Menu β†’ Configure screen β†’ Right panel β†’ Current time
On Click-
FormatTime & Format is configured by device settings

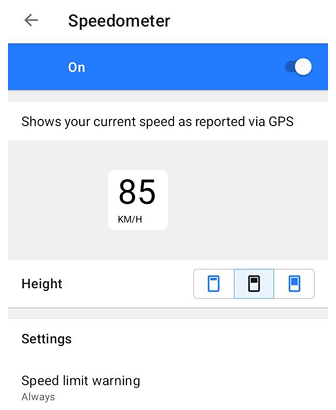

Speed​

Speed widget shows your current speed detected by GPS-sensor.

Speed widget

EnableMenu β†’ Configure screen β†’ Right panel β†’ [object Object]
On Click-
FormatAndroid: Menu β†’ Configure profile β†’ General settings β†’ Units & formats β†’ Unit of speed
iOS: Menu β†’ Settings β†’ App profiles β†’ General settings β†’ Units & formats β†’ Unit of speed

Average speed widget​

This widget shows your average speed in the past for a selected time interval and doesn't require any other features such as recording track or navigation. And you can easily use it for validating your average speed against speed limits on highways, for recording last 5-15 min average speed riding a bicycle.

Click on the Settings button of the Average Speed widget to select the time interval and the stop on/off option: Menu β†’ Configure screen β†’ Widgets β†’ Available widgets β†’ Average speed

Time interval.
The average speed is calculated for the set interval of time, according to your choice. Thus, you can set the interval for calculating your average speed from 15 seconds to 60 minutes. In general, the average speed is taken from recorded points by GPS: Average Speed = AVERAGE(GPS_LOCATION.speed).

Take stops into account.
Off setting: If you stop for a while, zeroes will also be added to the average speed calculation, which can significantly change the overall value. On setting: If your average speed is less than 1 speed unit per hour, this value will not be added to the average speed calculation. This allows your average speed not to change much when you stop, for example, at a traffic light or want to take a break from cycling.

Average speed Average speed

Average speed widgets

EnableMenu β†’ Configure screen β†’ Left panel β†’ Average speed
Menu β†’ Configure screen β†’ Right panel β†’ Average speed
On Click–

Battery level​

This widget shows battery level of your device.

Battery level widget

EnableMenu β†’ Configure screen β†’ Right panel β†’ Battery level
On Click-

Coordinates widget​

The widget is shown at the top of the screen. It shows the geographic coordinates of:

  • Β Coordinates: Map center - shows coordinates of any points on the center screen.
  • Β Coordinates: Current location - shows coordinates of current geolocation.

Where green icons are Map center coordinates, blue icons are My location coordinates.

Coordinates widget Android Coordinates widget Android

EnableAndroid: Menu β†’ Configure screen β†’ Widgets β†’ Top panel β†’ Coordinates widget β†’ Coordinates: Map center / Coordinates: Current location
On ClickCopies the coordinates to the clipboard
FormatAndroid: Menu β†’ Configure profile β†’ General settings β†’ Units & formats β†’ Coordinate format

GPS Info​

note

You can reset the current GPS-cache via:

Menu β†’ Open settings β†’ Browse map β†’ Configure profile β†’ OsmAnd development β†’ A-GPS info

GPS (Global Positioning System) info widget shows a number of satellites that device detects and uses at that moment. It could be used to check GPS-status in case of a bad GPS-signal.

GPS Info Android widget

EnableAndroid: Menu β†’ Configure screen β†’ Right panel β†’ GPS
On ClickOpens GPS status menu with 3rd party tools for tuning onboard GPS device.

* Trip recording widgets​

note

You can read a more detailed description here: Trip recording plugin.

Trip recording widgets refer to Trip recording plugin. You can use them to view brief information about the track recording on the screen. Such as Distance, Duration, Uphill and Downhill for the Android version and for iOS version only Distance/Start-Stop.

trip_recording_widget

EnableMenu β†’ Configure screen β†’ Widgets β†’ Left / Right panel β†’ Trip recording
On ClickStarts/Stop track recording or View the graph

* External sensors widgets​

note

You can read a more detailed description here: External sensors plugin.

External sensors widgets refer to External sensors plugin. You can use them to view brief information from external sensors. Such as Heart Rate, Bicycle Power, Bicycle Cadence, Bicycle Speed, Bicycle Distance.

External sensor widgets Android

EnableMenu β†’ Configure screen β†’ Left panel /Right panel β†’ External sensors
On Click-

* Parking widget​

Enable Parking position plugin: Menu β†’ Plugins (Android) / Maps & Resources (iOS) β†’ Parking position.

This is a Parking position plugin widget that shows distance from your screen center to the parking place.

Parking widget

EnableMenu β†’ Configure screen β†’ Right panel β†’ Parking
On ClickMoves map view to the parking position
FormatAndroid: Menu β†’ Configure profile β†’ General settings β†’ Units & formats β†’ Units of length
iOS: Menu β†’ Settings β†’ App profiles β†’ General settings β†’ Units & formats β†’ Units of length

* Mapillary widget​

Enable Mapillary plugin: Menu β†’ Plugins (Android) /Maps & Resources (iOS) β†’ Mapillary.

This is a Mapillary plugin widget that provides quick access to Mapillary app to add Street-Level-Imagery.

EnableMenu β†’ Configure screen β†’ Right panel β†’ Mapillary widget
On ClickOpens Mapillary application

Note: Mapillary application should be installed separately.

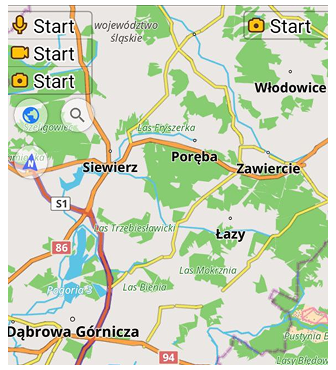

* Audio-video notes widget​

Enable Audio/video notes plugin: Menu β†’ Plugins β†’ Audio/video notes.

This is a Audio/video notes plugin widget that provides quick access to start / stop taking a recording (audio / video or photo).

Audio-video notes widget

Configure what default action should be taken (Menu β†’ Configure screen β†’ Right panel β†’ Audio/video notes):

  • On request – every time dialog to choose aciton is displayed. (default state).
  • Record audio – takes an audio note by default.
  • Record video – records a video by default.
  • Take a photo – takes a photo by default.
EnableMenu β†’ Configure screen β†’ Right panel β†’ Audio/video notes
On ClickStart / stops taking a note

* Tracker widget (Android)​

Install OsmAnd Online GPS Tracker from Google Play or other source.

Enable OsmAnd Tracker plugin: Menu β†’ Plugins β†’ OsmAnd Online GPS Tracker.

This is OsmAnd Tracker plugin widget is used to get quick access to OsmAnd Tracker app and share your location with other people.Β It shows whether connection is online or offline and if sharing location is enabled, then the time since last successful sending is dispalyed.

Tracker widget

EnableMenu β†’ Configure screen β†’ Right panel β†’ OsmAnd tracker
On ClickOpens OsmAnd Tracker app

* FPS-info (Android)​

Enable Developer plugin: Menu β†’ Plugins β†’ OsmAnd development.

This is a Developer plugin widget to investigate how fast map & map elements are showed & refreshed. It displays:

  • UI interaction FPS - panning & dragging map (higher number).
  • Map refresh FPS - refreshing points, routes on the map (smaller number).

FPS info Android widget

EnableAndroid: Menu β†’ Configure screen β†’ Right panel β†’ [object Object]
On Click-

Note: FPS doesn't reflect how quickly full offline map screen is rendered, there is another Developer plugin setting for it - Rendering debug info.
